Ankara, Türkiye — freight railcar manufacturing
Your partner in modern railcar manufacturing
Our flagship is the Sggns(s) 80′ container carrier — a 19,300 mm platform rated for 68 tonnes, certified to TSI/EN standards and in production today.
- 01 TSI / EN certified
- 02 22.5 t axle load
- 03 Produced in Serbia
The product

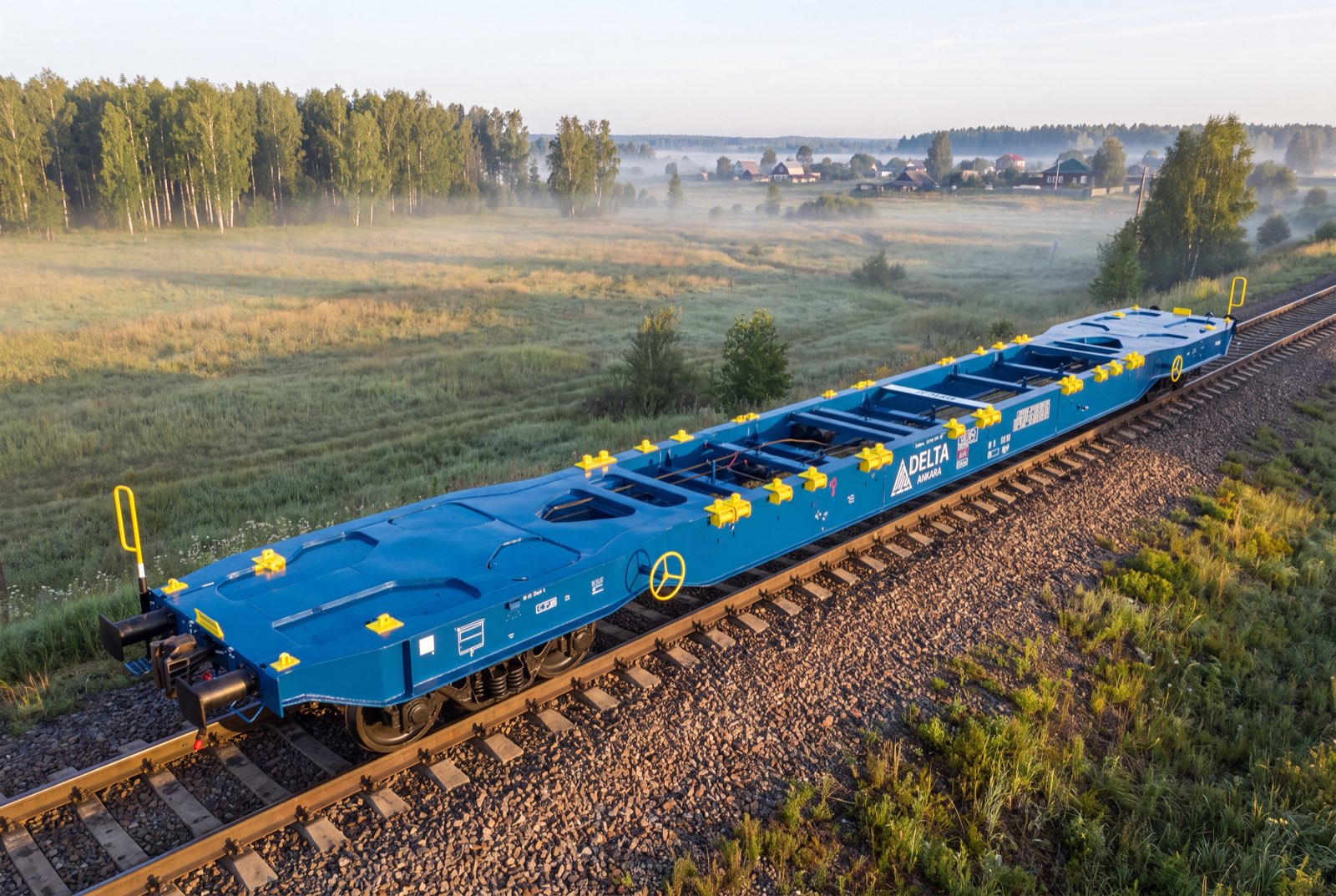

Sggns(s) 80′.
Where efficiency meets versatility.
Our pride and joy is the 80-feet flatcar. This remarkable vehicle stands out for its exceptional load capacity, robust construction and versatile applications.
A continuous 19,300 mm platform carries containers, heavy machinery and oversized cargo — up to 68 tonnes on Y25Lsd-KP1 bogies rated for 22.5 t per axle. Thanks to our construction methods the car not only handles heavy loads but also optimises loading and unloading, saving time and cost.
-
0t
Loading capacity
Payload on a 22 t unladen car — 90 t gross at the maximum axle load.
-
19,300mm
Platform length
25,940 mm over buffers — sized for the longest intermodal loads in circulation.
-
120km/h
Max empty speed
100 km/h at 22.5 t per axle, on TSI-certified monobloc wheels.

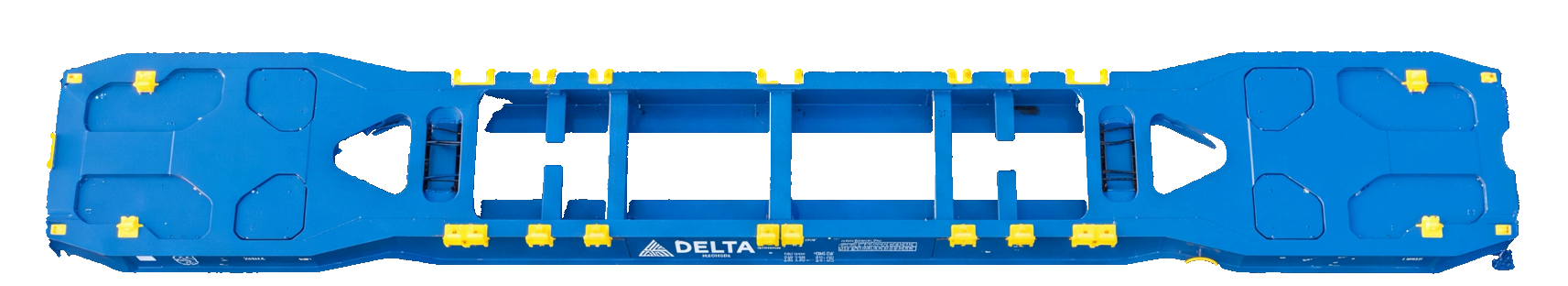

Plan view — 19,300 mm of continuous deck
Specifications
Sggns(s) 80′ Container Carrier.
| Max empty speed | 120 km/h |
|---|---|
| Max speed for 22.5 t axle load (90 t total) | 100 km/h |
| Max axle load | 22.5 t/axle |
| Length over buffers | 25,940 mm |
| Length over end beams | 24,700 mm |
| Platform length | 19,300 mm |
| Buffer height (new empty car) | 1,020 mm |
| Coupler height (new empty car) | 1,000 mm |
| Load height | 1,155 mm |
| Loading capacity | 68 t |
| Max unladen weight | 22 t |
| Bogie type | Y25Lsd-KP1 |
| Bogie wheelbase | 1,800 mm |
| Bogie gauge | 1,435 mm |
| Monobloc wheel, WAG TSI certified | 22.5 t |
| Wheel diameter | 920 mm |
Production
Place of production: Serbia.
Every Delta Ankara car is manufactured under strict quality control, to uphold the highest standards of safety and performance. Serial production runs from our Serbian facility; commercial and engineering coordination sits in Ankara. Wheels and bogies are TSI-certified components, and each car is documented for cross-border service across the European network.
- Manufacturing
- Serbia
- Head office
- Ankara, Türkiye
- Standard
- TSI / EN
- Track gauge
- 1,435 mm
Our mission
Progress through innovation.
Our mission is to shape the future of railcar manufacturing. We firmly believe that innovation is the key to sustainable growth and positive transformation. That is why we combine state-of-the-art technologies, high-quality materials and intelligent design to create rail solutions that meet the demands of today's economy.
Why Delta Ankara
Six reasons operators work with us.
-
01
Innovative solutions
We invest in ongoing research and development to consistently offer our customers the latest railcar innovations.
-
02
Top quality
Our flatcars are manufactured under strict quality controls to uphold the highest standards of safety and performance.
-
03
Proven track record
Certified according to TSI/EN standards, our 80-feet flatcars are supplied as reliable, compliant railcar solutions — delivered with precision and punctuality.
-
04
Customer-centric approach
We listen to our customers and tailor our solutions to their specific requirements, providing customised railcar solutions.
-
05
Sustainability
We embrace eco-friendly manufacturing methods and materials to promote a sustainable future for the transportation sector.
-
06
Experience and passion
Our dedicated team brings extensive experience in railcar manufacturing and shares a passion for innovation and progress.
The range
A wider selection.
The Sggns(s) 80′ is the car we build most, but it is not the only one we build. A shorter 40-foot platform, a four-axle tank wagon and an open gondola all come off the same line in Serbia, on the same Y25 bogies, to the same TSI/EN standards. Tell us what you move and we will point you at the right one.
-
Sgmmns(s) 40′
4-Axle Container Carrier
A short, stiff platform for 40-foot boxes and dense, heavy loads — the highest payload of anything we make.
- Loading capacity
- 74 t
- Platform length
- 7,970 mm
- Over buffers
- 13,510 mm
-
Za(c)nc
Tank Wagon
Four-axle carbon-steel tank for liquid chemicals and petroleum products, on a G1-TSI clearance gauge.
- Usable tank volume
- ~88.0 m³
- Load capacity
- ~68 t
- Over buffers
- 15,240 mm
-
Gondola
Open Wagon
An open-topped body for bulk and piece goods — coal, aggregate, scrap, timber, palletised freight.
- Load capacity
- 66 t
- Body capacity
- 67.6 m³
- Internal length
- 14,490 mm
Interested in one of these?
Ask us anything — full specifications, quantities, lead times, or how a car would handle your particular load. And if what you need is not on this page, say so anyway. There is a good chance we can build it.
Contact
Tell us what you need to move.
Specifications, lead times, volumes — we answer directly, no gatekeeping.
info@delta-ankara.com.tr Address Balgat Mah. Ceyhun Atuf Kansu Caddesi No: 36/606520 Ankara, Türkiye
